HD 720P 1080P 5MP AHD Camera Home Wired Surveillance Infrared Night Vision Bullet Outdoor BNC CCTV Security Camera
$13.20 – $21.26
NOTE：This is AHD Camera , AHD Camera must use AHD DVR to make it working ! Don’t support Analog DVR /NVR, it cann’t directly connect to the TV/LCD monitor,please take notice !!!
Why AHD?
As the industry moves from standard definition to high definition, how can we ensure the whole surveillance system not only satisfies the resolution requirement, but also the total cost?
Super Video Technology presents Analog High Definition(AHD) technology to the market. AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
How AHD can be beneficial to us?
• Upgraded to analog HD seamlessly with Low-cost and simple installation value-added solution. Go after the conventional analog system topology and give a full consideration to users’ operation habit.
• Megapixel & uncompressed image quality.
• Long range & non-latency reliable video transmission without additions of relay devices.
• Strong anti-interference capability & solid interface protection. Free of high-frequent electromagnetic radiation; constant signal transmission and display without problems as frame drop and lock loss occurred.
• An open analog HD transmission system established and evolved industry chain developed to sustainably improve the technical standard.
High Quality Night Vision Smart Infrared Cut Filter (ICR)
Camera has a very good night image quality. Infrared Cut Filter to ensure the highest quality images – day and night.

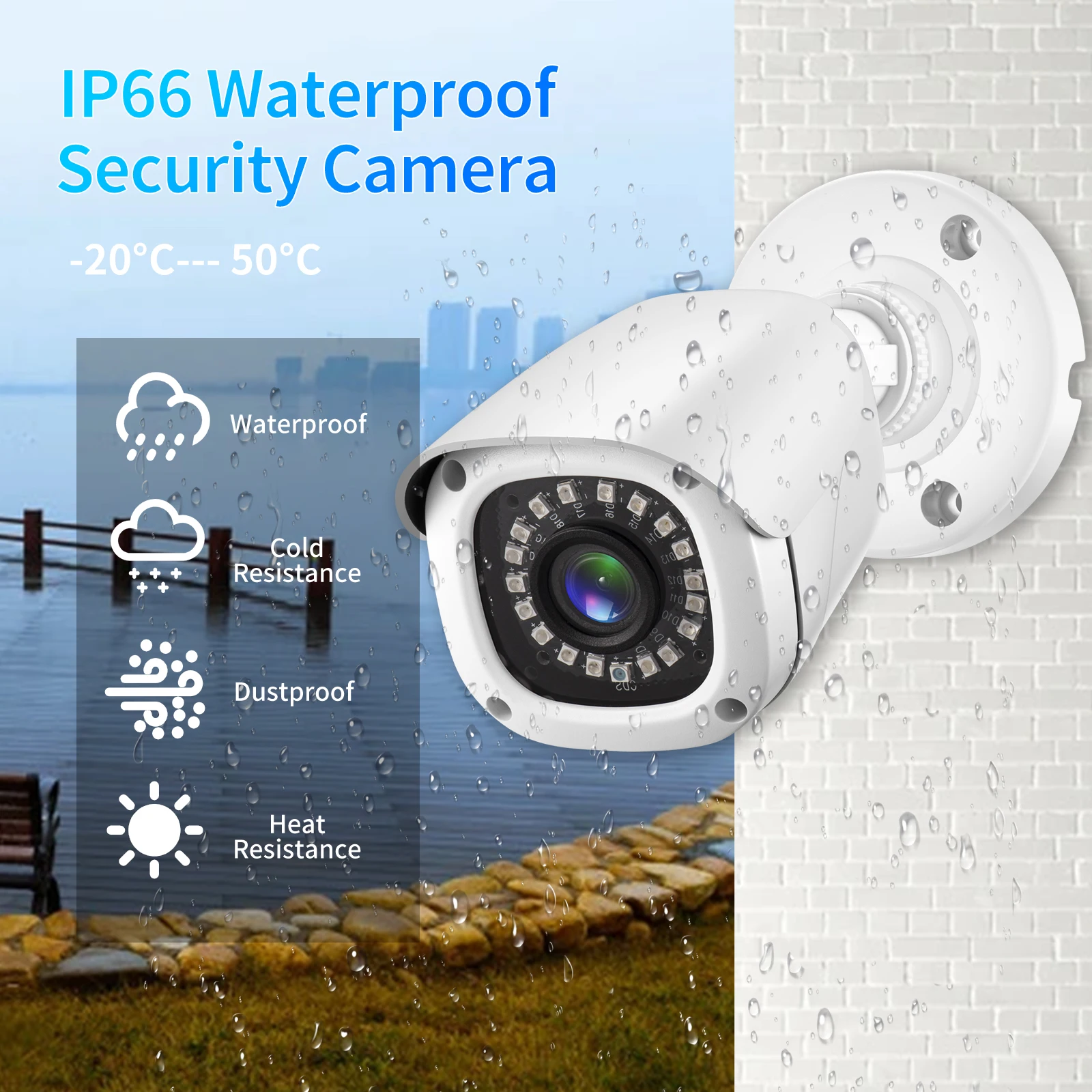

Waterproof Security Camera
Camera can suit for both outdoor and indoor usage.
Suitable for a variety of places
Locate incident Video with Smart Playback
You can freely playback to any specific moment on the timetable of your recordings and enjoy it on a beautiful intuitive interface

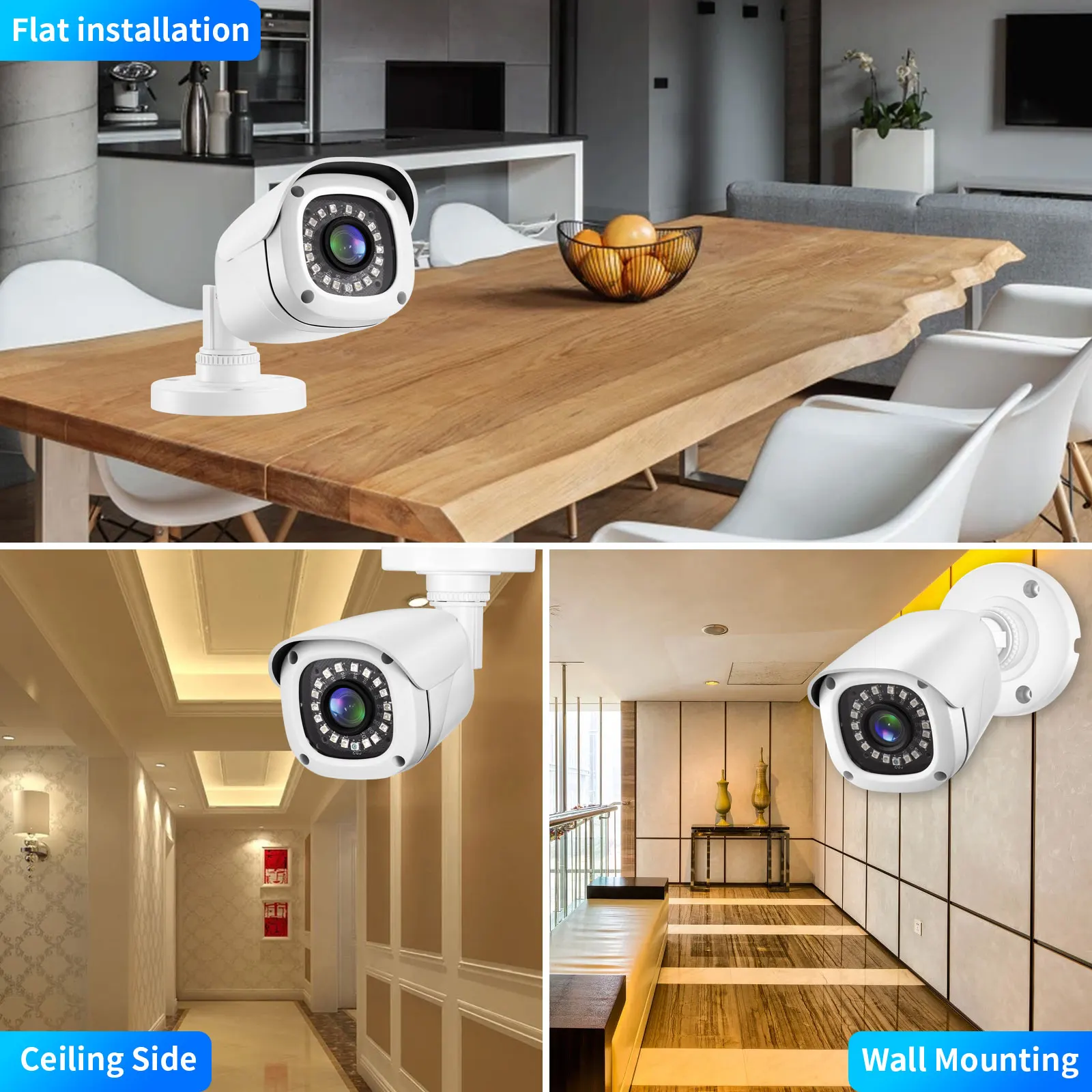

Ceiling and Side
Very important!!!
This is AHD Camera , AHD Camera must use AHD DVR to make it working ! Don’t support Analog DVR /NVR, it cann’t directly connect to the TV/LCD monitor,please take notice !!!
Description
1. AHD 720P,1080P,5MP
2. 2.8mm,3.6mm,6mm HD lens optional
3. Color CMOS Sensor, ICR
4. ABS plastic housing,bullet camera outdoor indoor use
5. 18pcs IR leds light , 5-25M Max IR distance
|
Model |
AHD 720P,1080P,5MP |
|
Sensor |
CMOS sensor |
|
Minimum Illumination |
Color:0.01Lux,(F1.2,AGC ON),0Lux with IR |
|
Black & White:0.001Lux,(F1.2,AGC ON),0Lux with IR |
|
|
Photosensitive Resistance |
1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage |
|
Shutter |
1/50(1/60) seconds to 1/10,000 seconds |
|
Day and Night Function |
Support IR-CUT |
|
Infrared light |
18pcs IR Leds |
|
Lens |
2.8mm/3.6mm/6mm/8mm |
|
Synchronous Mode |
inter-sync |
|
Noise-signal Ratio |
>58dB |
|
Temperature and Humidity |
– 10’C ~ 60’C, humidity is less than 90% (no condensation) |
|
Power |
DC12V±10% |
|
Consumption |
|
|
Dimension |
16.6*6.5cm |
|
Housing material |
ABS plastic |
Packaging included:
1xAHD Camera(DC 12V Power supply not included)

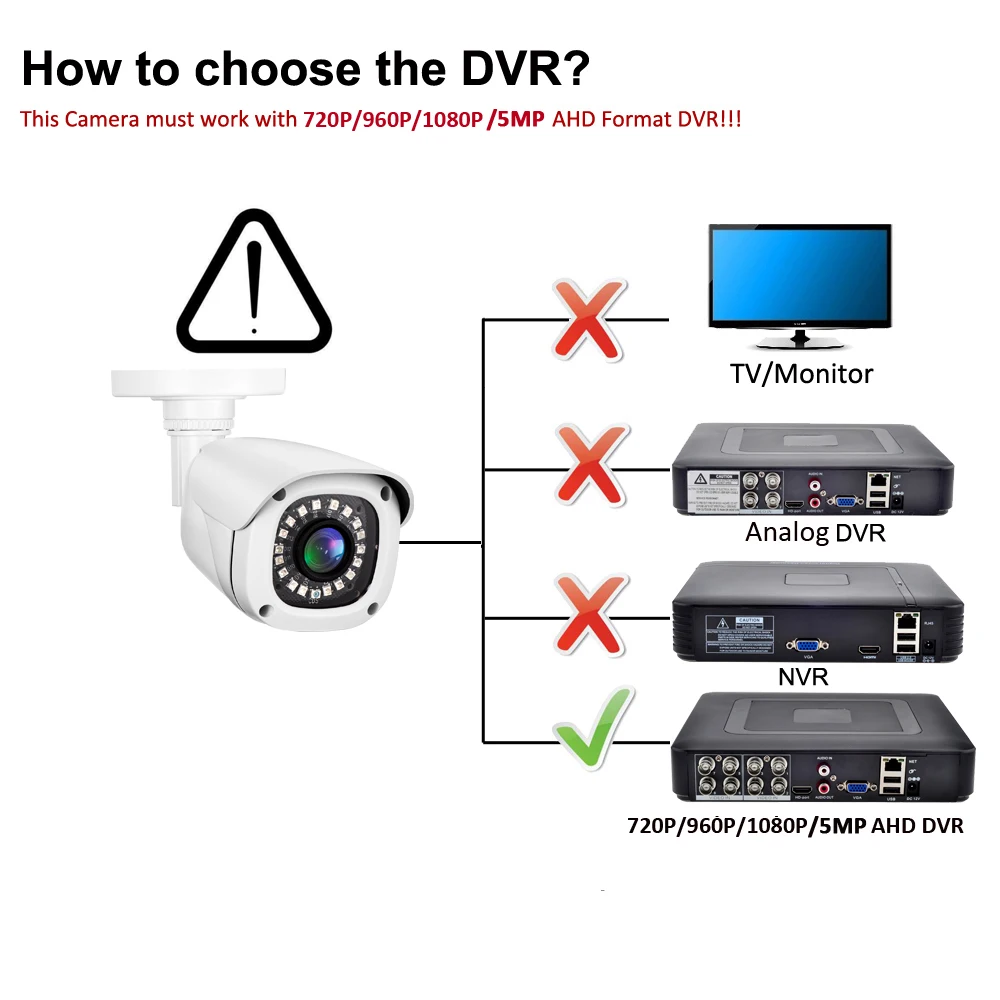

Note:if you buy AHD 5MP camera, make sure your DVR is AHD 5MP DVR.
AHD camera must be connected to AHD DVR, not analog 960H DVR or TV monitor directly.
Warm Note:
If you need AHD 5MP DVR(can support AHD 5MP/4MP/3MP/1080P/960P/720P), please click the picture to buy.
|
| Brand Name | Gadinan |
|---|---|
| Origin | Mainland China |
| High Definition | 5.0 Megapixels |
| Supported Operating Systems | No |
| Lens (mm) | 3.6mm |
| Style | Bullet Camera |
| Connectivity | Closed System/CCTV Wired |
| Installation | Wall Mounted |
| Minimum Illumination(Lux) | 0.01Lux |
| Scene | Indoor and Outdoor |
| Megapixels | 5mp |
| Video Compression Format | H.264 |
| IR Distance(m) | 5-20M, 25meter |
| Certification | CE |
| Dimensions (L x W x D)(mm) | 16.6*6.5cm |
| Color | White |
| is_customized | No |
| Model Number | H3AHD |
| Supported Mobile Systems | Android, IOS |
| Smart home platform | Other |
| IP Rating | IP66 |
| Special Features | Waterproof / Weatherproof |
| TF Card | None |
| Power Supply(V) | DC 12V |
| Power Consumption(W) | 3W |
| Sensor | CMOS |
| Sensor Brand | SmartSens |
| Power Supply | Normal |
| Viewing Angle | 85° |
| Feature | AHD(Analog High Definition) |
| IR-CUT | Auto Switch |
| Viewing Angle (Degree) | 80-90degree |
